Name: Weidmüller 1606720000
Brand: Weidmüller
SKU: 1606720000
Price: 5.2718 USD
Availability: InStock
Rating: 5 (389 reviews)

All Categories

Weidmüller 1606720000

Part Number:

1606720000

Manufacturer/Brand:

Weidmuller

Part of Description:

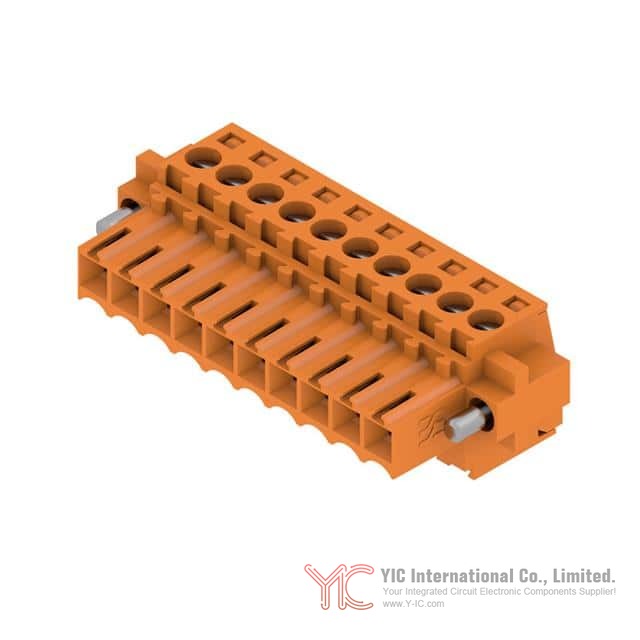

TERM BLOCK PLUG 10POS STR 3.5MM

Datasheets:

1.1606720000.pdf ···: 2D Drawings
Cylindrical Battery Holders.pdf

RoHs Status:

RoHS Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Quantity

Unit Price

$9.51

10+

$8.145

25+

$7.7732

50+

$6.9878

100+

$6.6156

250+

$5.9954

500+

$5.5819

1000+

$5.2718

Specifications
Shopping Manual
Shipping Information
Packaging

~~Weidmüller 1606720000 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments 1606720000.~~

Product Attribute	Attribute Value
Wire Strip Length	6mm
Wire Gauge or Range - mm²	0.2-1.5mm²
Wire Gauge or Range - AWG	14-28 AWG
Voltage - UL	300 V
Voltage - IEC	320 V
Type	Plug, Female Sockets
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Series	Omnimate BL
Screw Size	M2
Positions Per Level	10
Plug Wire Entry	180°
Pitch	0.138' (3.50mm)
Package	Bulk
Operating Temperature	-50°C ~ 100°C

Product Attribute	Attribute Value
Number of Positions	10
Number of Levels	1
Mounting Type	Free Hanging (In-Line)
Material Flammability Rating	UL94 V-0
Insulation Height	0.512' (13.00mm)
Ingress Protection	IP20
Housing Material	Polybutylene Terephthalate (PBT)
Header Orientation	-
Features	Mating Flange
Current - UL	10 A
Current - IEC	17A
Contact Tail Length	-
Contact Mating Finish	Tin
Contact Material	Copper Alloy
Color	Orange
