Name: SUPERIOR TECH PHCD-SS020G1CBOLE-B346
Brand: SUPERIOR TECH
SKU: PHCD-SS020G1CBOLE-B346
Price: 0.8921 USD
Availability: OutOfStock

All Categories

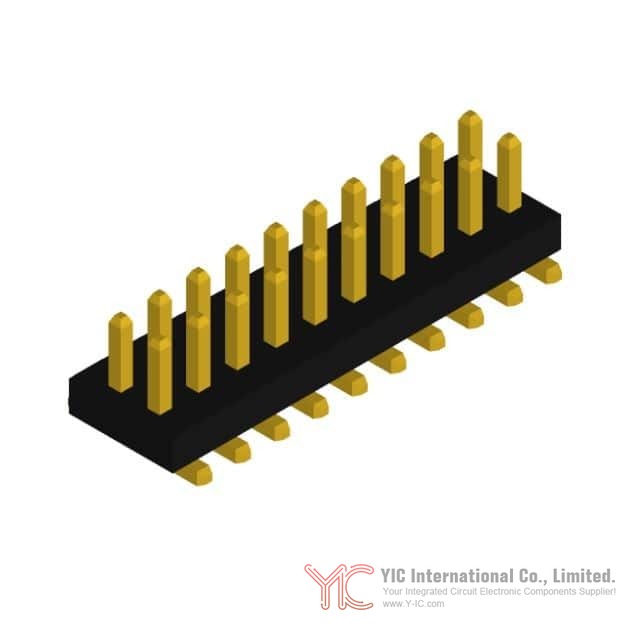

SUPERIOR TECH PHCD-SS020G1CBOLE-B346

Part Number:

PHCD-SS020G1CBOLE-B346

Manufacturer/Brand:

Superior Tech

Part of Description:

MALE HEADER VERTICAL 20POS SMD G

Datasheets:

1.PHCD-SS020G1CBO.pdf ···: 2D Drawings
PHCD-SSzzzG1CBOLE-B346 Drawing.pdf

RoHs Status:

ROHS3 Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Quantity

Unit Price

$1.44

10+

$1.214

100+

$1.0903

500+

$0.8921

Specifications
Shopping Manual
Shipping Information
Packaging

~~SUPERIOR TECH PHCD-SS020G1CBOLE-B346 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments PHCD-SS020G1CBOLE-B346.~~

Product Attribute	Attribute Value
Voltage Rating	-
Termination	Solder
Style	Board to Board
Shrouding	Unshrouded
Series	PHCD
Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)
Package	Tape & Reel (TR)
Overall Contact Length	0.064" (1.62mm)
Operating Temperature	-40°C ~ 125°C
Number of Rows	2
Number of Positions Loaded	All
Number of Positions	20
Mounting Type	Surface Mount
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free

Product Attribute	Attribute Value
Insulation Height	0.039" (1.00mm)
Insulation Color	Black
Ingress Protection	-
Features	Pick and Place
Fastening Type	Push-Pull
Current Rating (Amps)	1A
Contact Type	Male Pin
Contact Shape	Square
Contact Material	Brass
Contact Length - Post	0.079" (2.00mm)
Contact Length - Mating	0.079" (2.00mm)
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Finish - Mating	Gold
Connector Type	Header
Applications	-
