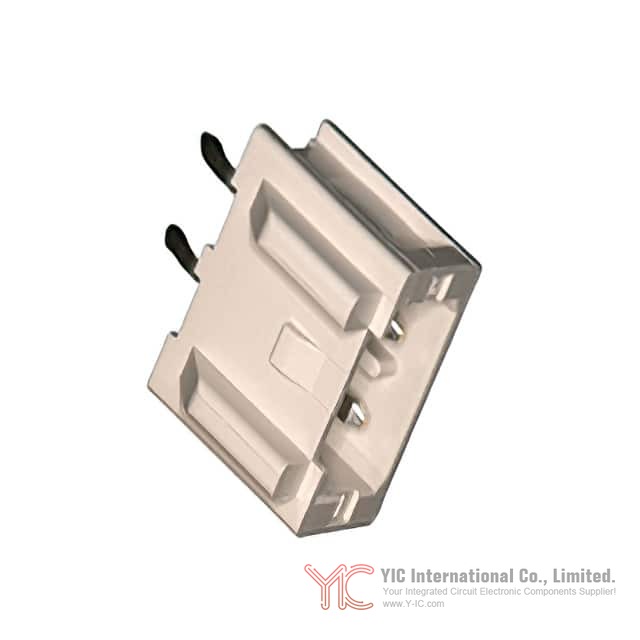

Name: JAM SMH25-02WS
Brand: JAM
SKU: SMH25-02WS
Price: 0.0603 USD
Availability: InStock

All Categories

JAM SMH25-02WS

Part Number:

SMH25-02WS

Manufacturer/Brand:

JAM

Part of Description:

2.5 MM W TO B CONNECTOR 2P WAFER

Datasheets:

1.SMH25-02WS.pdf ···: 2D Drawings
SMH Connector.pdf

RoHs Status:

ROHS3 Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Quantity

Unit Price

$0.16

10+

$0.125

25+

$0.1032

50+

$0.0952

100+

$0.092

250+

$0.0793

500+

$0.0761

1000+

$0.0666

2500+

$0.0603

Specifications
Shopping Manual
Shipping Information
Packaging

~~JAM SMH25-02WS technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SMH25-02WS.~~

Product Attribute	Attribute Value
Voltage Rating	250VAC/DC
Termination	Press-Fit, Solder
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Series	SMH
Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)
Package	Bulk
Overall Contact Length	-
Operating Temperature	-40°C ~ 85°C
Number of Rows	1
Number of Positions Loaded	All
Number of Positions	2
Mounting Type	Through Hole
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled

Product Attribute	Attribute Value
Insulation Height	0.252" (6.40mm)
Insulation Color	White
Ingress Protection	-
Features	-
Fastening Type	Latch Holder
Current Rating (Amps)	3A
Contact Type	Male Pin
Contact Shape	Square
Contact Material	Brass
Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-
Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Finish - Mating	Tin
Connector Type	Header
Applications	-
