Name: JAM SJA20-05WSB
Brand: JAM
SKU: SJA20-05WSB
Price: 0.1215 USD
Availability: InStock

All Categories

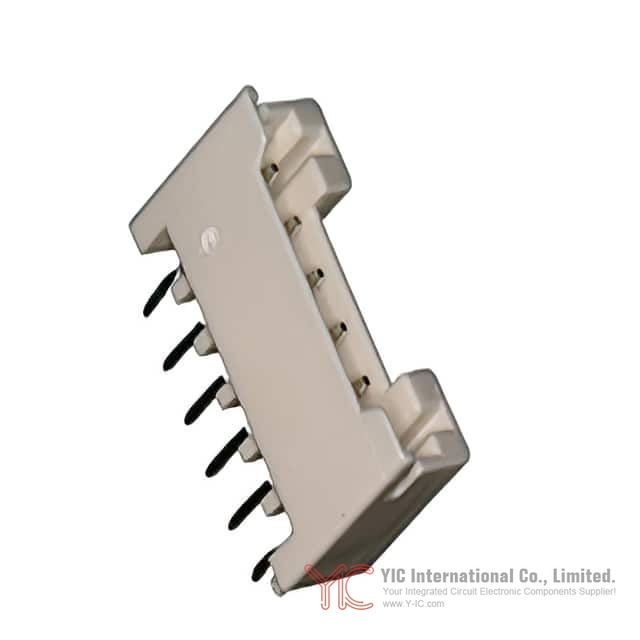

JAM SJA20-05WSB

Part Number:

SJA20-05WSB

Manufacturer/Brand:

JAM

Part of Description:

2 MM W TO B CONNECTOR 5P WAFER S

Datasheets:

1.SJA20-05WSB.pdf ···: 2D Drawings
SJA Connector.pdf

RoHs Status:

ROHS3 Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Quantity

Unit Price

$0.28

10+

$0.239

25+

$0.2108

50+

$0.1936

100+

$0.1861

250+

$0.1671

500+

$0.1595

1000+

$0.1329

2500+

$0.1215

Specifications
Shopping Manual
Shipping Information
Packaging

~~JAM SJA20-05WSB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SJA20-05WSB.~~

Product Attribute	Attribute Value
Voltage Rating	250VAC/DC
Termination	Press-Fit, Solder
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Series	SJA
Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)
Package	Bulk
Overall Contact Length	-
Operating Temperature	-40°C ~ 85°C
Number of Rows	1
Number of Positions Loaded	All
Number of Positions	5
Mounting Type	Through Hole
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled

Product Attribute	Attribute Value
Insulation Height	0.303" (7.70mm)
Insulation Color	White
Ingress Protection	-
Features	Board Guide
Fastening Type	Latch Lock
Current Rating (Amps)	3A
Contact Type	Male Pin
Contact Shape	Square
Contact Material	Brass
Contact Length - Post	0.122" (3.10mm)
Contact Length - Mating	-
Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Finish - Mating	Tin
Connector Type	Header
Applications	-
