Name: Harwin Inc. M80-8631642
Brand: Harwin Inc.
SKU: M80-8631642
Availability: InStock
Rating: 5 (533 reviews)

All Categories

Harwin Inc. M80-8631642

Part Number:

M80-8631642

Manufacturer/Brand:

Harwin

Part of Description:

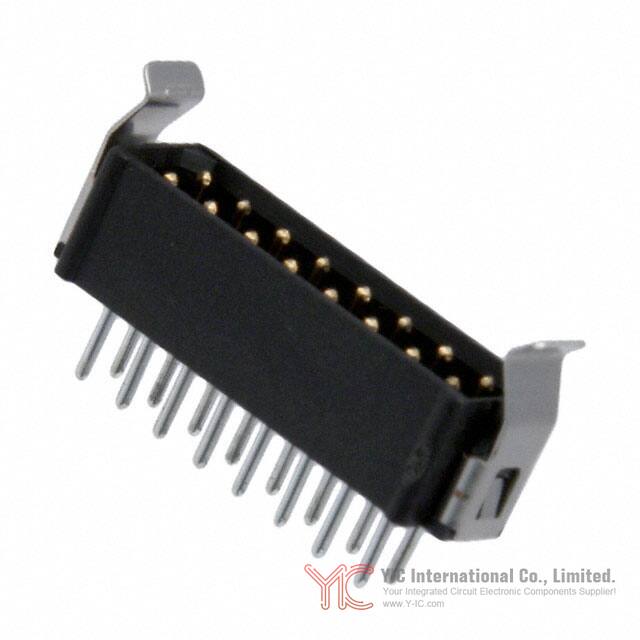

CONN HEADER VERT 16POS 2MM

Datasheets:

1.M80-8631642.pdf ···: Datasheets
M80-863 Drawing.pdf M80, M83 Series Spec Sheet.pdf

PCN Obsolescence/ EOL
Mult Devices EOL 05/Mar/2018.pdf

Environmental Information
Harwin REACH.pdf RoHS Cert M80-8631642.pdf

RoHs Status:

ROHS3 Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Specifications
Shopping Manual
Shipping Information
Packaging

~~Harwin Inc. M80-8631642 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments M80-8631642.~~

Product Attribute	Attribute Value
Voltage Rating	800V
Termination	Solder
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Series	Datamate L-Tek
Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)
Package	Tube
Overall Contact Length	-
Operating Temperature	-55°C ~ 125°C
Number of Rows	2
Number of Positions Loaded	All
Number of Positions	16
Mounting Type	Through Hole
Material Flammability Rating	UL94 V-0
Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Insulation Material	Polyamide (PA46), Nylon 4/6

Product Attribute	Attribute Value
Insulation Height	0.219" (5.56mm)
Insulation Color	Black
Ingress Protection	-
Features	-
Fastening Type	Friction Lock
Current Rating (Amps)	2.2A
Contact Type	Male Pin
Contact Shape	Circular
Contact Material	Phosphor Bronze
Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	-
Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Finish - Mating	Gold
Connector Type	Plug
Applications	-
