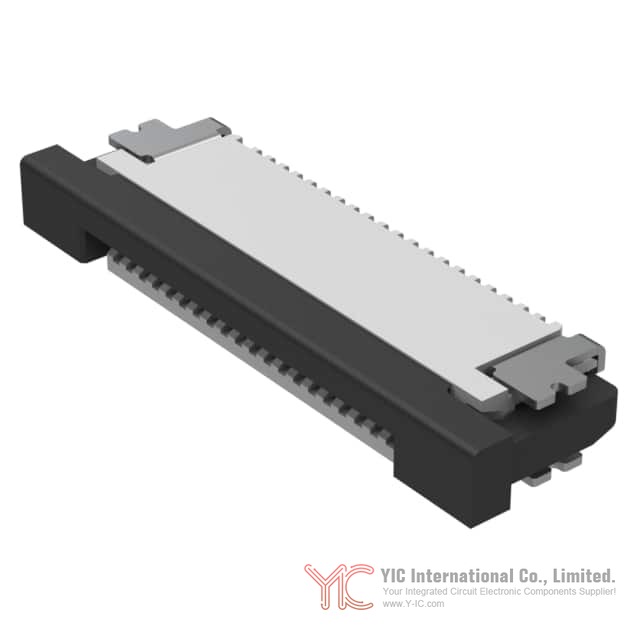

Name: Cvilux USA CF20201D0R0-NH
Brand: Cvilux USA
SKU: CF20201D0R0-NH
Price: 0.204 USD
Availability: InStock

All Categories

Cvilux USA CF20201D0R0-NH

Part Number:

CF20201D0R0-NH

Manufacturer/Brand:

CviLux

Part of Description:

CONN FFC BOTTOM 20POS 0.5MM R/A

Datasheets:

1.CF20201D0R0-NH.pdf ···: 2D Drawings
CF2006SF.pdf

RoHs Status:

ROHS3 Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Quantity

Unit Price

$0.43

10+

$0.367

25+

$0.3236

50+

$0.2972

100+

$0.2856

250+

$0.2565

500+

$0.2448

1000+

$0.204

Specifications
Shopping Manual
Shipping Information
Packaging

~~Cvilux USA CF20201D0R0-NH technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CF20201D0R0-NH.~~

Product Attribute	Attribute Value
Voltage Rating	50V
Termination	Solder
Series	CF20
Pitch	0.020" (0.50mm)
Package	Tape & Reel (TR)
Operating Temperature	-25°C ~ 85°C
Number of Positions	20
Mounting Type	Surface Mount, Right Angle
Mating Cycles	-
Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock
Housing Material	Thermoplastic, Halogen Free
Housing Color	Natural

Product Attribute	Attribute Value
Height Above Board	0.079" (2.00mm)
Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm
Current Rating (Amps)	0.4A
Contact Material	Copper Alloy
Contact Finish Thickness	120.0µin (3.05µm)
Contact Finish	Tin
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Actuator Material	Thermoplastic, Halogen Free
Actuator Color	Black
