Name: Cvilux USA CF07161U0R0-NH
Brand: Cvilux USA
SKU: CF07161U0R0-NH
Price: 0.2494 USD
Availability: InStock

All Categories

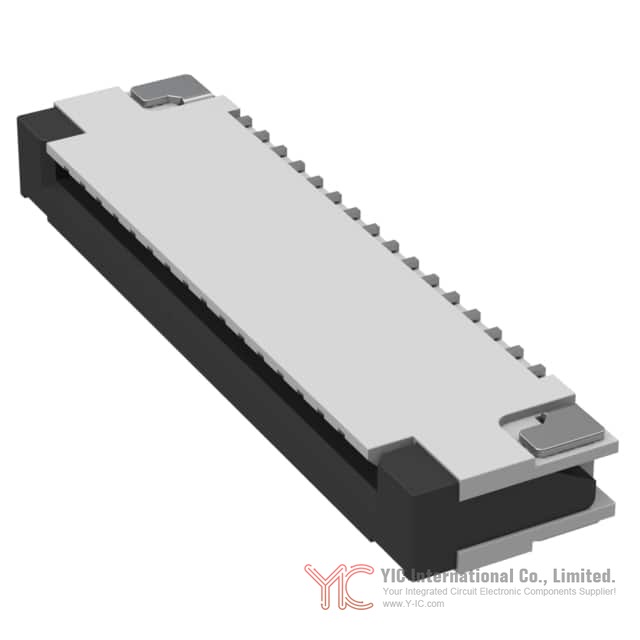

Cvilux USA CF07161U0R0-NH

Part Number:

CF07161U0R0-NH

Manufacturer/Brand:

CviLux

Part of Description:

CONN FFC FPC TOP 16POS 1MM R/A

Datasheets:

None

RoHs Status:

ROHS3 Compliant

ECAD Model:

Payment:

PayPal / Credit Card / T/T

Shipment Way:

DHL / Fedex / TNT / UPS / EMS

Copy link successfully

Quantity

Unit Price

$0.48

10+

$0.422

25+

$0.3856

50+

$0.3628

100+

$0.3476

250+

$0.3174

500+

$0.3023

1000+

$0.2494

Specifications
Shopping Manual
Shipping Information
Packaging

~~Cvilux USA CF07161U0R0-NH technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments CF07161U0R0-NH.~~

Product Attribute	Attribute Value
Voltage Rating	100V
Termination	Solder
Series	CF07
Pitch	0.039" (1.00mm)
Package	Tape & Reel (TR)
Operating Temperature	-25°C ~ 85°C
Number of Positions	16
Mounting Type	Surface Mount, Right Angle
Mating Cycles	-
Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock
Housing Material	Thermoplastic, Halogen Free
Housing Color	Natural

Product Attribute	Attribute Value
Height Above Board	0.102" (2.60mm)
Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm
Current Rating (Amps)	1A
Contact Material	Copper Alloy
Contact Finish Thickness	-
Contact Finish	Tin
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Actuator Material	Thermoplastic, Halogen Free
Actuator Color	Black
